Multipair Overall Foil & Braid Screened Cables
Multipair Overall Screened Armoured Cables-Belden Equivalent 26500
Application
These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

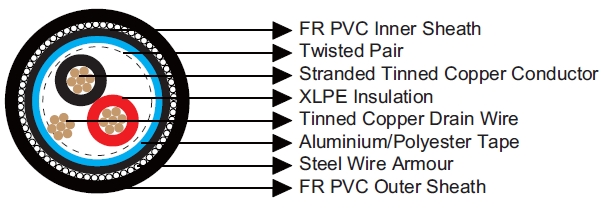

Construction
Conductor: Conductor: Tinned copper wire
Insulation: XLPE.
Overall Screen: Aluminium/ Polyester tape.
Drain Wire: 18 AWG (7X26) tinned copper wire
Inner Sheath: FR PVC.
Armour: Steel wire armour.
Outer Sheath: FR PVC.
Insulation Colour: Black, Red. Other colours are available upon your request.
Electrical & Mechanical Characteristics
| AWG | 16 | |
| Conductor Construction | 7x24 | |
| Nominal Conductor DC Resistance @20℃ | Ω/km | 14 |
| Nominal Outer Shield DC Resistance @ 20℃ | Ω/km | 13 |
| Voltage Rating | V | 300 |
| Bending Radius | 11xOverall Diameter | |
| Operating Temperature | ℃ | -40~90 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE1126500V SWA | 1 | 0.7 | 1.5 | 13.24±1 |
