Tight Buffer Breakout PVC/LSZH Jacketed Cable

Application:
Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
Description: Construction:

The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction.  Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded round a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.

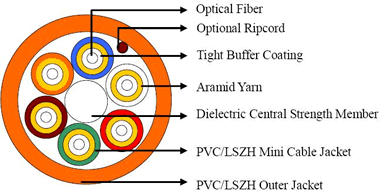

Tight buffer breakout PVC or LSOH Jacketed

Physical Properties:

Fiber Count

Nominal Weight
(kg/km)

Nominal Weight

(lb/kft)

Nominal Outer Diameter
(mm)

Nominal Outer Diameter
(in)

Maximum Pulling Load

Installation
(N/lb)

In Service
(N/lb)

2

50.0

33.56

5.5

0.217

1200/270

490/110

6

110.0

73.83

12.5

0.493

2000/450

800/180

12

160.0

107.38

13.0

0.512

3515/790

1200/270

24

230.0

154.36

15.5

0.611

5470/1230

2000/450



Mechanical Properties:

Minimum Bending Radius:
Under installation:     20×OD
During operation:      10×OD for unarmoured cables
20×OD for armoured cables
Temperature Range:
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉)
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉)

Maximum Compressive Load:3000N for unarmoured
                                     5000N for armoured
Repeated Impact:      2.9 N.m (J)  3×2 impacts
Twist (Torsion):        180×10 times, 125×OD
Cyclic Flexing:         25 cycles for armoured cables.
100 cycles for unarmoured cables.
Crush Resistance:   1750N/cm (1000lb/in)

Fiber Compliance:

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

Safety Compliance:

General Purpose Grade
Flammability Test: OFN (UL1581)
Riser Grade
Flammability Test: OFNR/FT4 (UL1666)
Plenum Grade
Flammability Test: OFNP/FT6 (UL 910)
FRPVC Grade
Flammability Test: IEC60332-1
LSZH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2

LSFROH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A

FR Grade
Fire Resistance Test: IEC 60331 / BS 6387 CWZ



Standard Compliance:
GR409-CORE                                          TIA/EIA 568B.3               ICEA-S-83-596

Features:

  • Most rugged and "user friendly" cable design for Local Area Networks
  • For installations where ease of termination and termination costs are important factors
  • Short and moderate distance links between buildings or within a building, where multiple termination points are needed
  • Breakout cables are designed for direct termination with standard connectors
  • Cable ideal for direct pulling with wire mesh grips
  • Suitable for both indoor and outdoor use -- no need to for splicing at the building entrance
  • Flame-retardant or LSZH version for indoor installations
  • Fungus-resistant, water-resistant, and UV-resistant for outdoor use
  • High quality tight-buffered coating on each fiber for environmental and mechanical protection
