    PROFIBUS 1 Pair 0.35mm²

    Application

    These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

    Standards

    DIN VDE 0472 part 805

    IEC 60332-1&2

    IEC 60754-1/2

    IEC 61034

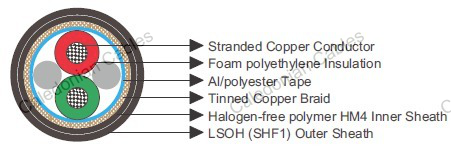

    Construction

    Conductors : Stranded bare copper.

    Insulation : Foam polyethylene (cellular HDPE).

    Overall Screen1 : Aluminium/polyester tape.

    Overall Screen2 : Tinned copper braid.

    Inner Sheath : Halogen-free polymer HM4.

    Outer Sheath : LSOH (SHF1).

    Core Identification

    Core 1 : Red

    Core 2 : Green

    Electrical Characteristics

    Characteristic Impedance Ω 150 ± 15
    Mutual Capacitance @800MHz nF/km 30
    Insulation Resistance MΩ.km 16000
    Attenuation @9.6kHz dB/km 3
    Attenuation @38.4kHz dB/km 5
    Attenuation @4kHz dB/km 22
    Attenuation @16kHz dB/km 45

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 10×OD

    Temperature Range : -35℃ ~ +80℃

    Dimensions and Weight



    Part No. Construction No. of elements × No. of cores in element × Cross section Core Diameter Nominal Overall Diameter Nominal Weight
      mm² mm mm kg/km
    MLN-02Y(ST)CH-1×2×0.35 1×2×0.35 2.75 10.3 110
