Type SHD-PCG Three-Conductor Portable Power Cable 2kV
Applications
These heavy duty cables are designed for use on longwall shearers, where three shielded power conductors, three unshielded control conductors, and a grounding conductor are required.
Standards
- ICEA S-75-381/NEMA WC 58
- ASTM B 172
- ASTM B 33
- CAN/CSA-C22.2 No.96

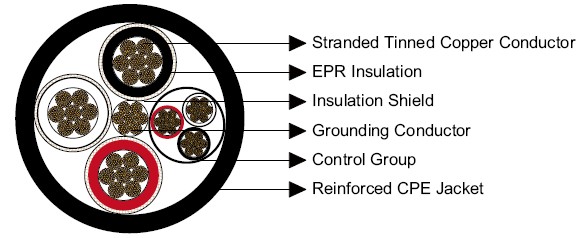

Construction
- Conductors: Stranded annealed tinned copper conductor.
- Insulation:EPR.
- Insulation Shield:Non-conducting Tape + Tinned copper/textile braid.
- Control Group (3 Conductor):Tinned copper conductor, EPR insulation and thermosetting sheath. Colour of insulation: Black, white and red.
- Grounding Conductor:Tinned copper conductor, located in the center of the cable.
- Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon request.
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
- Minimum Bending Radius: 6×OD
- Maximum Operating Temperature: +90℃
Dimensions and Weight:
| Construction | No. of Strands | Grounding Conductor Size | Control Conductor Size | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | ||||
| No. of cores×AWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×1/0 | 259 | 3 | 8 | 0.08 | 2.0 | 0.205 | 5.2 | 2.05 | 52.1 | 3092 | 4602 | 211 |
| 3×2/0 | 329 | 2 | 8 | 0.08 | 2.0 | 0.220 | 5.6 | 2.25 | 57.1 | 3698 | 5503 | 243 |
| 3×3/0 | 413 | 1 | 8 | 0.08 | 2.0 | 0.220 | 5.6 | 2.32 | 58.9 | 4295 | 6392 | 279 |
| 3×4/0 | 532 | 1/0 | 8 | 0.08 | 2.0 | 0.250 | 6.3 | 2.62 | 66.5 | 5115 | 7612 | 321 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
