XAV

Application and Description

XAV cables are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion (rank BE3 NF C 15-100) with mechanical protection is necessary and in this case the intensity must be reduced by 15%.

Standard and Approval

IEC60502-1,NP2365

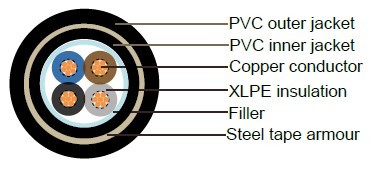

Cable Construction

- Flexible copper strands
- Strands to IEC 60228, ≤4mm2,class 1, ≥6mm2,class 2
- XLPE insulation according to NF C 32-321
- Color codes to HD 308 S2(NF C32-321)
- Not fibrous and not hygroscopic filler
- PVC inner jacket
- Two steel tapes helically wraped armour
- Flexible black PVC outer jacket

XAVXAV

Technical Characteristics

- Working Voltage: 600/1000 volts
- Test voltage: 3500 volts
- Minimum bending radius: 6 x Ø
- Operation temperature rage: -10 °C to 60 °C
- Short-circuit temperature: 250 °C
- Flame retardant: NF C 32-070 C2
- Insulation resistance: 20 MΩ x km

Cable Parameter

AWG

Cross Section mm2 Insulation thickness mm Amour thickness mm Minimum Sheath thickness mm Maximum Overall diameter mm Approx Cable weight kg/km
16 2x1.5 0.7 0.2 1.3 11.5 230
14 2x2.5 0.7 0.2 1.3 12.5 275
12 2x4 0.7 0.2 1.4 13.5 330
10 2x6 0.7 0.2 1.4 15.5 430
8 2x10 0.7 0.2 1.4 16.5 555
6 2x16 0.7 0.2 1.5 19 770
4 2x25 0.9 0.2 1.6 22.5 1080
2 2x35 0.9 0.2 1.7 25 1390
16 3x1.5 0.7 0.2 1.3 12 255
14 3x2.5 0.7 0.2 1.3 13 305
12 3x4 0.7 0.2 1.4 14 380
10 3x6 0.7 0.2 1.4 16 500
8 3x10 0.7 0.2 1.5 17.5 665
6 3x16 0.7 0.2 1.5 20 930
4 3x25 0.9 0.2 1.6 24 1325
2 3x35 0.9 0.2 1.7 26.5 1720
1 3x50 0.9 0.2 1.8 29 2125
2/0 3x70 1.1 0.2 2 34.5 3080
3/0 3x95 1.1 0.5 2.1 40 4505
4/0 3x120 1.2 0.5 2.3 44.5 5540
300MCM 3x150 1.4 0.5 2.4 48.5 6655
500MCM 3x185 1.6 0.5 2.5 53.5 8150
750MCM 3x240 1.7 0.5 2.7 61 10575
- 3x300 1.8 0.5 2.9 66.5 13055
1 3x50+35 1.0/09 0.2 1.9 33 2730
2/0 3x70+50 1.1/0.9 0.2 2 36 3440
3/0 3x95+50 1.1/1.0 0.5 2.2 42.5 5080
4/0 3x120+70 1.2/1.1 0.5 2.3 46.5 6275
300MCM 3x150+70 1.4/1.1 0.5 2.5 50 7340
500MCM 3x185+70 1.6/1.1 0.5 2.6 56 8975
750MCM 3x240+95 1.7/1.1 0.5 2.8 62.5 11435
16 4x1.5 0.7 0.2 1.3 13 290
14 4x2.5 0.7 0.2 1.4 14 355
12 4x4 0.7 0.2 1.4 15 440
10 4x6 0.7 0.2 1.4 17 585
8 4x10 0.7 0.2 1.5 19 800
6 4x16 0.7 0.2 1.6 22 1120
4 4x25 0.9 0.2 1.7 26 1650
2 4x35 0.9 0.2 1.8 29 2135
1 4x50 1 0.2 1.9 32.5 2745
2/0 4x70 1.1 0.5 2.1 39 4295
3/0 4x95 1.1 0.5 2.3 44.5 5660
4/0 4x120 1.2 0.5 2.4 48.5 6880
300MCM 4x150 1.4 0.5 2.6 53 8315
500MCM 4x185 1.6 0.5 2.7 60.5 10510
750MCM 4x240 1.7 0.5 2.9 67 13370
- 4x300 1.8 0.5 3.1 73 16360
16 5x1.5 0.7 0.2 1.4 14 335
14 5x2.5 0.7 0.2 1.4 15 415
12 5x4 0.7 0.2 1.4 16 515
10 5x6 0.7 0.2 1.5 18.5 705
8 5x10 0.7 0.2 1.6 21 955
6 5x16 0.7 0.2 1.8 23.5 1340
4 5x25 0.9 0.2 1.8 29.5 2085
16 7x1.5 0.7 0.2 1.4 15 395
14 7x2.5 0.7 0.2 1.4 16 495
16 12x1.5 0.7 0.2 1.5 19 605
14 12x2.5 0.7 0.2 1.5 20.5 750
16 19x1.5 0.7 0.2 1.5 21.5 775
14 19x2.5 0.7 0.2 1.6 24 1045
16 24x1.5 0.7 0.2 1.6 24.5 980
14 24x2.5 0.7 0.5 1.7 29 1570
16 27x1.5 0.7 0.2 1.7 25 1050
14 27x2.5 0.7 0.2 1.8 28.5 1410
16 37x1.5 0.7 0.2 1.7 28 1320
14 37x2.5 0.7 0.2 1.8 31.5 1790
