Industrial Cables
H05V-R/H07V-R
Application and Description
H05V-R/H07V-R cables are preferably for installation indoors, in cable ducts and in industrial plants or switching
stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker
strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets
designed for export to a European country and for MRO replacement of European made equipment wire.
Standard and Approval
<HAR> HD 21.3 S3, BS 6004, VDE-0281 Part-3, CEI 20-20/3 , CEI 20-35 (EN60332-1)
CEI 20-52, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

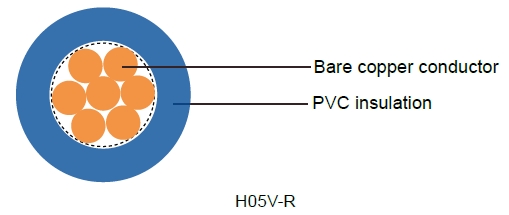

Cable Construction
Bare copper solid/strands conductor
Strands to VDE-0295 Class-2, IEC 60228 Cl-2
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
Technical Characteristics
Working voltage: 300/500 volts(H05V-R), 450/750 volts(H07V-R)
Test voltage: 2000 volts(H05V-R), 2500 volts(H07V-R)
Flexing bending radius: 15 x Ø
Static bending radius: 15 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +80º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩ x km
Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
H05V-R |
|||||
20(7/29) |
1 x 0.5 |
0.6 |
2.2 |
4.8 |
9 |
18(7/27) |
1 x 0.75 |
0.6 |
2.4 |
7.2 |
12 |
17(7/26) |
1 x 1 |
0.6 |
2.6 |
9.6 |
15 |
16(7/24) |
1 x 1.5 |
0.7 |
3.0 |
14.4 |
23 |
14(7/22) |
1 x 2.5 |
0.8 |
3.6 |
24 |
35 |
12(7/20) |
1 x 4 |
0.8 |
4.2 |
39 |
51 |
10(7/18) |
1 x 6 |
0.8 |
4.7 |
58 |
71 |
8(7/16) |
1 x 10 |
1.0 |
6.1 |
96 |
120 |
6(7/14) |
1 x 16 |
1.0 |
7.2 |
154 |
170 |
4(7/12) |
1 x 25 |
1.2 |
8.4 |
240 |
260 |
2(7/10) |
1 x 35 |
1.2 |
9.5 |
336 |
350 |
1(19/13) |
1 x 50 |
1.4 |
11.3 |
480 |
480 |
2/0(19/11) |
1 x 70 |
1,4 |
12.6 |
672 |
680 |
3/0(19/10) |
1 x 95 |
1,6 |
14.7 |
912 |
930 |
4/0(37/12) |
1 x 120 |
1,6 |
16.2 |
1152 |
1160 |
300MCM(37/11) |
1 x 150 |
1,8 |
18.1 |
1440 |
1430 |
350MCM(37/10) |
1 x 185 |
2,0 |
20.2 |
1776 |
1780 |
500MCM(61/11) |
1 x 240 |
2,2 |
22.9 |
2304 |
2360 |
1 x 300 |
2.4 |
24.5 |
2940 |
||
1 x 400 |
2.6 |
27.5 |
3740 |
||
