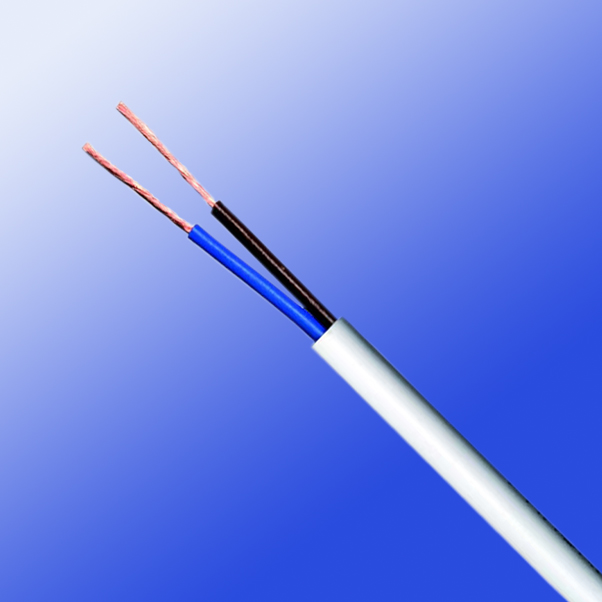

H03VV-F/H03VVH2-F
Application and Description
H03VV-F/H03VVH2-F cable types are especially suited for use on small appliances with low mechanical stress and for
connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners,
office machines, radios, etc. As far as these cables are admitted to the relevant specifications of the
equipment, They are not permitted for use with cooking or heating apparatus. H03VV-F/H03VVH2-F Cables with cross section 0.75
mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in
single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U
495/495 volts.
Standard and Approval
<HAR>BS6500, CENELEC HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,
CE low voltage directive 73/23/EEC & 93/68/EEC.ROHS compliant

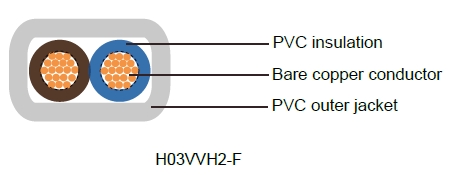

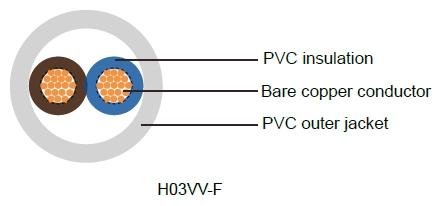

Cable Construction
Bare copper fine wire conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
PVC core insulation T12 to VDE-0281 Part 1
Color coded to VDE-0293-308
Green-yellow grounding (3 conductors and above)
PVC outer jacket TM2
Technical Characteristics
Working voltage: 300/300 volts
Test voltage: 2000 volts
Flexing bending radius: 7.5 x Ø
Static bending radius: 4 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -40º C to +70º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
H03VV-F |
||||||
20(16/32) |
2 x 0.50 |
0.5 |
0.6 |
5 |
9.6 |
38 |
20(16/32) |
3 x 0.50 |
0.5 |
0.6 |
5.4 |
14.4 |
45 |
20(16/32) |
4 x 0.50 |
0.5 |
0.6 |
5.8 |
19.2 |
55 |
18(24/32) |
2 x 0.75 |
0.5 |
0.6 |
5.5 |
14.4 |
46 |
18(24/32) |
3 x 0.75 |
0.5 |
0.6 |
6 |
21.6 |
59 |
18(24/32) |
0.5 |
0.6 |
6.5 |
28.8 |
72 |
|
18(24/32) |
5 x 0.75 |
0.5 |
0.6 |
7.1 |
36.0 |
87 |
H03VVH2-F |
||||||
20(16/32) |
2 x 0.50 |
0.5 |
0.6 |
3.2 x 5.2 |
9.7 |
32 |
18(24/32) |
2 x 0.75 |
0.5 |
0.6 |
3.4 x 5.6 |
14.4 |
35 |
