Industrial Cables Multi-Core Flexible Cables
658TQ to BS 6883
Application and Description
658TQ to BS 6883 cables are designed for temporary building sites as extension leads for portable or fixed
equipment. The copper braid prevents earth leakage and offers mechanical protection.

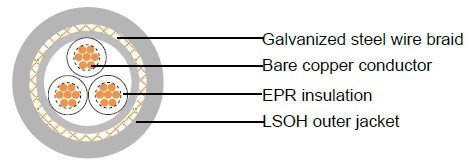

Cable Construction
Fine bare copper strands
Stranding to BS 6360 Class 2 or IEC 60228 Class 2
EPR(Ethylene Propylene Rubber) rubber insulation to BS 6899
GSWB (Galvanized steel wire braid) armour
LSOH(Low Smoke Zero Halogen), type SW4 to BS 6899
Core Identification
white insulation with black numerals
Technical Characteristics
Working voltage: 600/1000 volts
Test voltage: 2000 volts
Minimum bending radius: up to 10mm² 3xOverall diameter
10mm²-25mm² 4xOverall diameter
Above 25mm² 6xOverall diameter
Temperature Range: -25º C to +85º C
Oxygen Index32%, HCL 5%
Flame retardant: IEC 60332.1
Cable Parameter
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Bedding mm |
Diameter of Braid Wire mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 6582TQ | |||||||
| 17(7/26) | 2x1.0 | 0.8 | 1 | 0.3 | 1.2 | 12.1 | 230 |
| 16(7/24) | 2x1.5 | 0.8 | 1.1 | 0.3 | 1.2 | 12.7 | 250 |
| 14(7/22) | 2x2.5 | 0.8 | 1.1 | 0.3 | 1.2 | 13.9 | 305 |
| 12(7/20) | 2x4 | 1 | 1.2 | 0.3 | 1.3 | 16.3 | 420 |
| 10(7/18) | 2x6 | 1 | 1.2 | 0.3 | 1.4 | 17.6 | 515 |
| 8(7/16) | 2x10 | 1.2 | 1.3 | 0.3 | 1.5 | 20.7 | 725 |
| 6(7/14) | 2x16 | 1.2 | 1.4 | 0.3 | 1.6 | 23.4 | 975 |
| 4(7/12) | 2x25 | 1.4 | 1.5 | 0.3 | 1.7 | 28.1 | 1340 |
| 2(7/10) | 2x35 | 1.4 | 1.6 | 0.3 | 1.8 | 30.1 | 1540 |
| 1(19/13) | 2x50 | 1.6 | 1.7 | 0.45 | 2 | 35.1 | 2140 |
| 2/0(19/11) | 2x70 | 1.6 | 1.9 | 0.45 | 2.2 | 39.3 | 2820 |
| 3/0(19/10) | 2x95 | 1.8 | 2.1 | 0.45 | 2.3 | 44.4 | 3690 |
| 4/0(37/12) | 2x120 | 1.8 | 2.2 | 0.45 | 2.5 | 48.5 | 4380 |
| 300MCM (37/11) |
2x150 | 2 | 2.3 | 0.45 | 2.7 | 53.4 | 5360 |
| 350MCM (37/10) |
2x185 | 2.2 | 2.5 | 0.45 | 2.9 | 58.8 | 6550 |
| 500MCM (61/11) |
2x240 | 2.4 | 2.8 | 0.45 | 3.2 | 65.8 | 8310 |
| (61/10) | 2x300 | 2.6 | 3 | 0.45 | 3.4 | 72.7 | 10200 |
| 6583TQ | |||||||
| 17(7/26) | 3x1.0 | 0.8 | 1.1 | 0.3 | 1.2 | 12.5 | 245 |
| 16(7/24) | 3x1.5 | 0.8 | 1.1 | 0.3 | 1.2 | 13.4 | 280 |
| 14(7/22) | 3x2.5 | 0.8 | 1.1 | 0.3 | 1.3 | 14.7 | 360 |
| 12(7/20) | 3x4 | 1 | 1.2 | 0.3 | 1.3 | 17 | 475 |
| 10(7/18) | 3x6 | 1 | 1.2 | 0.3 | 1.4 | 18.4 | 586 |
| 8(7/16) | 3x10 | 1.2 | 1.3 | 0.3 | 1.5 | 22.1 | 860 |
| 6(7/14) | 3x16 | 1.2 | 1.4 | 0.3 | 1.6 | 24.6 | 1150 |
| 4(7/12) | 3x25 | 1.4 | 1.6 | 0.3 | 1.8 | 29.8 | 1640 |
| 2(7/10) | 3x35 | 1.4 | 1.7 | 0.45 | 1.9 | 33.1 | 2030 |
| 1(19/13) | 3x50 | 1.6 | 1.8 | 0.45 | 2.2 | 37.2 | 2640 |
| 2/0(19/11) | 3x70 | 1.6 | 2 | 0.45 | 2.2 | 41.9 | 3480 |
| 3/0(19/10) | 3x95 | 1.8 | 2.2 | 0.45 | 2.5 | 47.6 | 4650 |
| 4/0(37/12) | 3x120 | 1.8 | 2.3 | 0.45 | 2.6 | 52 | 5540 |
| 300MCM (37/11) |
3x150 | 2 | 2.5 | 0.45 | 2.8 | 57.9 | 6770 |
| 350MCM (37/10) |
3x185 | 2.2 | 2.7 | 0.45 | 3 | 62.9 | 8310 |
| 500MCM (61/11) |
3x240 | 2.4 | 2.9 | 0.45 | 3.3 | 70.6 | 10680 |
| (61/10) | 3x300 | 2.6 | 3.2 | 0.45 | 3.6 | 77.9 | 13100 |
| 6584TQ | |||||||
| 17(7/26) | 4x1.0 | 0.8 | 1.1 | 0.3 | 1.2 | 13.4 | 300 |
| 16(7/24) | 4x1.5 | 0.8 | 1.1 | 0.3 | 1.2 | 14.2 | 320 |
| 14(7/22) | 4x2.5 | 0.8 | 1.1 | 0.3 | 1.3 | 15.7 | 410 |
| 12(7/20) | 4x4 | 1 | 1.2 | 0.3 | 1.4 | 18.4 | 570 |
| 10(7/18) | 4x6 | 1 | 1.3 | 0.3 | 1.5 | 20.1 | 720 |
| 8(7/16) | 4x10 | 1.2 | 1.4 | 0.3 | 1.6 | 24 | 1050 |
| 6(7/14) | 4x16 | 1.2 | 1.5 | 0.3 | 1.7 | 26.9 | 1410 |
| 4(7/12) | 4x25 | 1.4 | 1.7 | 0.45 | 1.9 | 33.6 | 2160 |
| 2(7/10) | 4x35 | 1.4 | 1.8 | 0.45 | 2 | 36.1 | 2510 |
| 1(19/13) | 4x50 | 1.6 | 1.9 | 0.45 | 2.2 | 41 | 3290 |
| 2/0(19/11) | 4x70 | 1.6 | 2.1 | 0.45 | 2.4 | 46.1 | 4410 |
| 3/0(19/10) | 4x95 | 1.8 | 2.3 | 0.45 | 2.6 | 52.6 | 5880 |
| 4/0(37/12) | 4x120 | 1.8 | 2.5 | 0.45 | 2.8 | 57.4 | 7050 |
| 300MCM (37/11) |
4x150 | 2 | 2.7 | 0.45 | 3 | 63.1 | 8620 |
| 350MCM (37/10) |
4x185 | 2.2 | 2.9 | 0.45 | 3.5 | 69.6 | 10620 |
| 500MCM (61/11) |
4x240 | 2.4 | 3.2 | 0.45 | 3.6 | 78.3 | 13580 |
| (61/10) | 4x300 | 2.6 | 3.5 | 0.45 | 3.9 | 82.6 | 16760 |
| 6585TQ | |||||||
| 16(7/24) | 5x1.5 | 0.8 | 0.8 | 0.3 | 1.3 | 15.6 | 370 |
| 14(7/22) | 5x2.5 | 0.8 | 0.8 | 0.3 | 1.3 | 17.4 | 470 |
| 12(7/20) | 5x4 | 1 | 1 | 0.3 | 1.5 | 20.3 | 680 |
| 6586TQ | |||||||
| 16(7/24) | 6x1.5 | 0.8 | 1.2 | 0.3 | 1.3 | 17 | 420 |
| 14(7/22) | 6x2.5 | 0.8 | 1.2 | 0.3 | 1.4 | 18.5 | 545 |
| 12(7/20) | 6x4 | 1 | 1.3 | 0.3 | 1.5 | 21.7 | 765 |
| 6588TQ | |||||||
| 16(7/24) | 8x1.5 | 0.8 | 1.2 | 0.3 | 1.3 | 18.1 | 545 |
| 14(7/22) | 8x2.5 | 0.8 | 1.3 | 0.3 | 1.4 | 20.5 | 735 |
| 12(7/20) | 8x4 | 1 | 1.4 | 0.3 | 1.5 | 23.7 | 1000 |
| 65812TQ | |||||||
| 16(7/24) | 12x1.5 | 0.8 | 1.3 | 0.3 | 1.3 | 21.7 | 685 |
| 14(7/22) | 12x2.5 | 0.8 | 1.4 | 0.3 | 1.4 | 24 | 919 |
| 12(7/20) | 12x4 | 1 | 1.6 | 0.3 | 1.5 | 28.2 | 1240 |
| 65816TQ | |||||||
| 16(7/24) | 16x1.5 | 0.8 | 1.4 | 0.3 | 1.3 | 23.1 | 791 |
| 14(7/22) | 16x2.5 | 0.8 | 1.5 | 0.3 | 1.4 | 25.9 | 840 |
| 65820TQ | |||||||
| 16(7/24) | 20x1.5 | 0.8 | 1.4 | 0.3 | 1.3 | 23.9 | 871 |
| 14(7/22) | 20x2.5 | 0.8 | 1.5 | 0.3 | 1.4 | 26.9 | 1190 |
| 65821TQ | |||||||
| 16(7/24) | 21x1.5 | 0.8 | 1.5 | 0.3 | 1.3 | 25.4 | 984 |
| 14(7/22) | 21x2.5 | 0.8 | 1.6 | 0.3 | 1.4 | 28.5 | 1320 |
| 65824TQ | |||||||
| 16(7/24) | 24x1.5 | 0.8 | 1.6 | 0.3 | 1.3 | 27.9 | 1130 |
| 14(7/22) | 24x2.5 | 0.8 | 1.7 | 0.45 | 1.4 | 32.2 | 1650 |
| 65827TQ | |||||||
| 16(7/24) | 27x1.5 | 0.8 | 1.6 | 0.3 | 1.3 | 28.3 | 1210 |
| 14(7/22) | 27x2.5 | 0.8 | 1.7 | 0.45 | 1.4 | 32.6 | 1760 |
