Industrial Cables Single Core Fixed Wiring Cable

6381Y to BS 6004 and 6346

Application and Description
6381Y to BS 6004 and 6346 cables are designed for DC power supplies on Telecom equipment and power applications where flexibility is required.

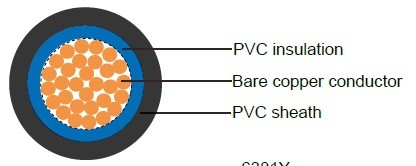

Cable Construction

Bare copper conductor
Stranding to BS6360 Class 5 or IEC60228 Class 5
PVC insulation Type TI1 to BS7655
PVC sheath Type TM1 to BS7655
oxygen index> 30%
Meets requirements for flammability as required by BT specification M231

6381Y to BS 6004 and 6346

Core Identification

Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order

Technical Characteristics

Working voltage: 1.0mm² to 35mm² 450/750V to BS 6004
50mm² and above 600/1000V to BS 6346
Minimum bending radius: up to 50 mm² : 3xoverall diameter,
70mm² and above: 4xoverall diameter
Operating temperature: -15º C to +70º C
Insulation resistance: 10 MΩxkm
Flame retardant: IEC 60332.1, BS4066 Part 1

Cable Parameter

AWG
(No of Strands/
Strand Diameter)
No. of Cores  x Nominal Cross Sectional Area
#xmm²
Nominal
Thickness
of Insulation
mm
Nominal Thickness of Sheath
mm
Nominal Overall Diameter
mm
Nominal Weight kg/km
16(30/30) 1x1.5 0.9 0.8 4.9 36
14(50/30) 1x2.5 0.9 0.8 5.4 52
12(56/28) 1x4 1 0.9 6.3 76
10(84/28) 1x6 1.1 0.9 7.6 100
8(80/26) 1x10 1.2 1 8.6 160
6(128/26) 1x16 1.2 1 9.8 230
4(200/26) 1x25 1.4 1.1 11.5 340
2(280/26) 1x35 1.4 1.1 12.5 440
1(400/26) 1x50 1.4 1.4 15.1 541
2/0(356/24) 1x70 1.4 1.4 17.0 749
3/0(485/24) 1x95 1.6 1.5 19.1 1000
4/0(614/24) 1x120 1.6 1.8 21.6 1241
300MCM (765/24) 1x150 1.8 1.8 23.4 1523
350MCM (944/24) 1x185 2 1.8 25.5 1942
500MCM(1225/24) 1x240 2.2 1.8 28.5 2514
(1525/24) 1x300 2.4 2 31.2 3125
(2013/24) 1x400 2.6 2.1 35.3 3967
(1769/23) 1x500 2.8 2.2 38.8 5063
(2257/23) 1x630 2.8 2.4 43.8 6491
