Industrial Cables Single Core Fixed Wiring Cable
6381B to BS 7211
Application and Description
6381B to BS 7211 cables are suitable for D.C. power supplies on telecom equipment and power applications where
flexibility is required. 6381B to BS 7211 cables produce no corrosive gases when burnt which is important where
electronic equipment is installed.

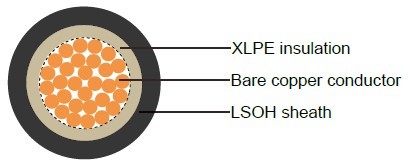

Cable Construction
Bare copper conductor
Stranding to BS6360 Class 5 or IEC60228 Class 5
XLPE(Cross-Linked Polyethylene) insulation
LSOH(Low Smoke Zero Halogen) sheath
Core Identification
Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order
Technical Characteristics
Working voltage: 600/1000V
Minimum bending radius: up to 50 mm² : 3xoverall diameter,
70mm² and above: 4xoverall diameter
Operating temperature: 0º C to +90º C
Insulation resistance: 10 MΩxkm
Flame retardant: IEC 60332.1, BS4066 Part 1
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 16(30/30) | 1x1.5 | 0.9 | 0.8 | 5.2 | 42 |
| 14(50/30) | 1x2.5 | 0.9 | 0.8 | 5.7 | 54 |
| 12(56/28) | 1x4 | 1 | 0.9 | 6.6 | 77 |
| 10(84/28) | 1x6 | 1.1 | 0.9 | 7.3 | 102 |
| 8(80/26) | 1x10 | 1.2 | 1 | 8.6 | 160 |
| 6(128/26) | 1x16 | 1.2 | 1 | 9.6 | 210 |
| 4(200/26) | 1x25 | 1.4 | 1.1 | 11.5 | 320 |
| 2(280/26) | 1x35 | 1.4 | 1.1 | 12.8 | 420 |
| 1(400/26) | 1x50 | 1.4 | 1.4 | 14.9 | 590 |
| 2/0(356/24) | 1x70 | 1.4 | 1.4 | 17.2 | 810 |
| 3/0(485/24) | 1x95 | 1.6 | 1.5 | 18.6 | 1020 |
| 4/0(614/24) | 1x120 | 1.6 | 1.8 | 20.8 | 1285 |
| 300MCM (765/24) | 1x150 | 1.8 | 1.8 | 23.1 | 1610 |
| 350MCM (944/24) | 1x185 | 2 | 1.8 | 25.3 | 1940 |
| 500MCM(1225/24) | 1x240 | 2.2 | 1.8 | 27.8 | 2480 |
| (1525/24) | 1x300 | 2.4 | 2 | 31.2 | 3050 |
| (2013/24) | 1x400 | 2.6 | 2.1 | 35.3 | 4035 |
| (1769/23) | 1x500 | 2.8 | 2.2 | 38.8 | 4970 |
| (2257/23) | 1x630 | 2.8 | 2.4 | 43.8 | 6510 |
