Industrial Cables Multi-Core Flexible Cables

209Y to BS 6500

Application and Description

209Y to BS 6500 cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds, 209Y to BS 6500 cables are adapted for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. 209Y is equivalent to harmonized code H03V2V2-F.

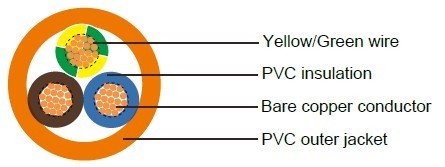

Cable Construction

Bare copper fine wire conductor
Stranding to BS 6360 Class 5 or IEC 60228 Class 5
PVC core insulation TI3
PVC outer jacket TM3

209Y to BS 6500

Core Identification

2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 cores: Green/Yellow, Black, Brown, Blue
5 Cores: Green/Yellow, Brown, Black, Grey, Blue

Technical Characteristics

Working voltage: 300/300 volts
Test voltage: 3000 volts
Flexing bending radius: 4xOverall diameter
Static bending radius: 3xOverall diameter
Flexing temperature: +5º C to +90º C
Static temperature: -40º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm

Cable Parameter

AWG (No of Strands/ Strand Diameter) No. of Cores  x Nominal Cross Sectional Area
of Insulation
Nominal Thickness of Sheath
Nominal Overall Diameter
Nominal Copper Weight kg/km Nominal Weight kg/km
20(16/32) 2x0.50 0.5 0.6 5 9.6 38
18(24/32) 2x0.75 0.5 0.6 5.5 14.4 46
20(16/32) 3x0.50 0.5 0.6 5.4 14.4 45
18(24/32) 3x0.75 0.5 0.6 6 21.6 59
20(16/32) 4x0.50 0.5 0.6 5.8 19.2 55
18(24/32) 4x0.75 0.5 0.6 6.5 28.8 72
