Fiber Optic Cables

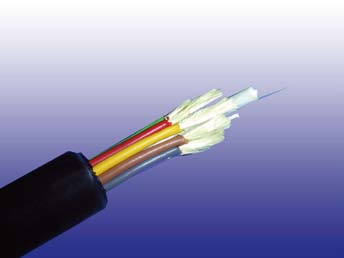

Breakout PVC Jacketed Cable
Application
Breakout Cable is designed for routing to different locations and direct termination of fi bers in the fi eld. The cable is mostly suitable for pre-terminated cable assemblies.
Description
The cable contains 2 to 36 fi bers which are individually buffered tight or semi-tight construction. Each fi ber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or fl exible all-dielectric. Outer Jacket may be PVC or LSZH.

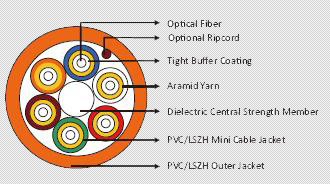

Construction
 |
 |
Physical Properties
Fiber Count |
Nominal Weight(kg/km) |
Nominal Weight(lb/kft) |
Nominal Outer Diameter(mm) |
Nominal Outer Diameter(in) |
Maximum Pulling Load |
|
Installation(N/Ib) |
In Service(N/Ib) |
|||||
2 |
50．0 |
33．56 |
5．5 |
0．217 |
1200/270 |
490/100 |
6 |
110．0 |
73．83 |
12．5 |
0．493 |
2000/450 |
800/180 |
12 |
160．0 |
107．38 |
13．0 |
0．512 |
3515/790 |
1200/270 |
24 |
230．0 |
154．36 |
15．5 |
0．611 |
5470/1230 |
2000/450 |
Mechanical Properities
| Minimum Bending Radius: | Maximum Compressive Load: | 3000N for unarmoured | |
| Under installation: | 20×OD | 5000N for armoured | |
| During operation | 10×OD for unarmoured cables | Repeated Impact: | 2.9 N.m (J) 3×2 impacts |
| 10×OD for unarmoured cables | Twist (Torsion): | 180×10 times, 125×OD | |
| Temperature Range: | Cyclic Flexing: | 25 cycles for armoured cables. | |
| Operating Temperature Range: | -40℃(-40℉) to +70℃(+158℉) | 100 cycles for unarmoured cables. | |
| Storage Temperature Range: | -50℃(-58℉) to +70℃(+158℉) | Crush Resistance: | 1750N/cm (1000lb/in) |
Fiber Compliance
Temperature Cycling |
IEC60794-1-2-F2 |
Safety Compliance
General Purpose Grade |
Flammability Test: OFN (UL1581) |
Riser Grade |
Flammability Test: OFNR/FT4 (UL1666) |
Plenum Grade |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grade |
Flammability Test: IEC60332-1 |
LSZH Grade |
Halogen Content Test: IEC 60754-1 |
LSFROH Grade |
Halogen Content Test: IEC 60754-1 |
FR Grade |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Standard Compliance
GR409-CORE TIA/EIA 568B.3 ICEA-S - 83-596
Features
• Most rugged and "user friendly" cable design for Local Area Networks
• For installations where ease of termination and termination costs are important factors
• Short and moderate distance links between buildings or within a building, where multiple termination points are needed
• Breakout cables are designed for direct termination with standard connectors
• Cable ideal for direct pulling with wire mesh grips
• Suitable for both indoor and outdoor use -- no need to for splicing at the building entrance
• Flame-retardant or LSZH version for indoor installations
• Fungus-resistant, water-resistant, and UV-resistant for outdoor use
• High quality tight-buffered coating on each fi ber for environmental and mechanical protection
