Tight Buffer

     Application
This cable is used for interconnection of the distribution boxes and end devices. The cable is very suitable for various indoor and outdoor applications, including routing between buildings within ducts and inside building up to riser shafts.

    Description

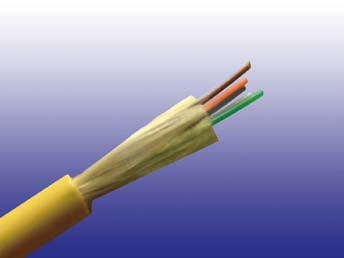

The Distribution Cable consists of color-coded PVC tight buffered fi bers. The fi bers are reinforced with aramid yarn for superior strength and contains no metallic elements. The fi bers are jacketed with Flame Retardant PVC or LSZH compound.

Fiber Optic Cables
Fiber Optic Cables

    Physical Properties

Fiber Count

Nominal Weight(kg/km)

Nominal Weight(lb/kft)

Nominal Outer Diameter(mm)

Nominal Outer Diameter(in)

Maximum Pulling Load

Installation(N/Ib)

In Service(N/Ib)

2-6

26.0

17.45

5.0

0.197

1000/225

290/65

8-12

50.0

33.56

7.5

0.296

1425/320

500/112

14-24

140.0

93.96

13.0

0.512

2670/600

890/200

26-36

200.0

134.23

16.5

0.650

4448/1000

1490/335

38-48

300.0

201.34

18.0

0.709

4448/1000

1490/335

    Mechanical Properties

Minimum Bending Radius: Maximum Compressive Load: 2000N
Under installation: 20×OD Repeated Impact: 2.9 N.m (J) 3×2 impacts
During operation: 10×OD Twist (Torsion): 180×10 times, 125×OD
Temperature Range: Cyclic Flexing: 25 cycles for armoured cables
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉)
                  100 cycles for unarmoured cables.
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉) Crush Resistance: 1485N/cm (850lb/in)

    Fiber Compliance

Temperature Cycling

Tensile Strength

Crush

Impact

Repeated Bending

Torsion

Kink

Cable Bend

Cool Bend

IEC60794-1-2-F2

IEC60794-1-2-E1A

IEC60794-1-2-E3

IEC60794-1-2-E4

IEC60794-1-2-E6

IEC60794-1-2-E7

IEC60794-1-2-E10

IEC60794-1-2-E11

IEC60794-1-2-E11

    Safety Compliance

General Purpose Grade

Riser Grade

Plenum Grade

FRPVC Grade

LSZH Grade



LSFROH Grade





FR Grade

Flammability Test: OFN(UL1581)

Flammability Test: OFNR/FT4 (UL1666)

Flammability Test: OFNP/FT6(UL 910)

Flammability Test: IEC60332-1

Halogen Content Test: IEC 60754-1

Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

Halogen Content Test: IEC 60754-1

Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

Flammability Test: IEC60332-1 & IEC 60332-3C/A

Fire Resistance Test: IEC 60331 / BS 6387 CWZ

    Standard Compliance

GR409-CORE                    TIA/EIA 568B.3                     ICEA-S-83-596

    Features

•Used in LAN and distribution applications where compact size and lightweight are required

•Suitable for both indoor and outdoor use - no need for splicing at the building entrance

•Flame-retardant or LSZH version for indoor installations

•Fungus-resistant, water-resistant, and UV-resistant for outdoor installations

•Cable can be armoured for additional protection in direct burial and aerial installations

•Highest specific strength-to-weight ratio for limited conduit space

•Economical for longer distance runs where cable cost is significant

•High quality tight-buffered coating on fiber for environmental and mechanical protection
