Automotive Cable

Germany Standard

FLRYCY

Application

Automotive PVC insulated,PVCsheathed multi-cores cable is used for car communication cable.

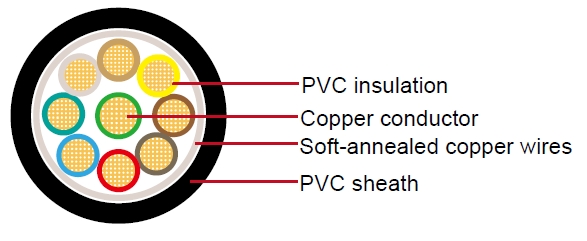

Construction:

FLRYCY

Conductor:

Cu-ETP1 according to DIN EN 13602

Insulation:

PVC

Shielding:

Soft-annealed copper wires CU-ETP1 or with tin coated soft-annealed copper wires specified in DIN 40500 and DIN EN 13602

Optical coverage of approximately 85% is reflected in very efficient shield attenuation.

Sheath:

PVC

Standard Compliance:

ISO 6722 Calss B

Technical Parameters:

Operating temperature:–40 °C to +105 °C

  Conductor Insulation Cable
Nominal
cross-
section
No. and Dia. of Wires. Diameter Max. Electrical resistance at 20℃ Bare/tinned Max. thickness wall Nom. Diameter of core Sheath thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm Kg/km
9 x0.08 10/0.11 0.45 35.30/36.50 0.20 0.80 0.60 4.60 4.90 38
10 x0.25 14/0.16 0.70 84.80/86.50 0.20 1.10 0.60 5.80 6.20 68
5 x0.35 19/0.16 0.80 52.00/54.50 0.25 1.30 0.50 4.70 5.10 47
8 x0.35 19/0.16 0.80 52.00/54.50 0.25 1.25 0.65 5.90 6.30 75
10 x0.35 19/0.16 0.80 52.00/54.50 0.25 1.25 0.65 6.50 6.90 83

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
