Longitudinally Water Blocked Cable


Applications

These outboard installation cables for naval vessels are transversally water blocked and longitudinally completely water blocked, designed according to VG 95218 part 29.

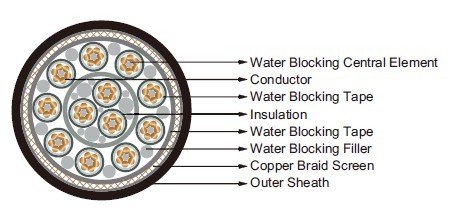

Construction

Submarine Cables

  • Conductor: Copper conductor, fine stranded.
  • Central Element: Water-blocking central element.
  • Separator: Water-blocking tape.
  • Insulation: Special elastomer.
  • Fillers: Water-blocking filler.
  • Separator: Water-blocking tape.
  • Screen: Copper braid with tinned wires.
  • Sheath: Cross linked halogen free flame retardant compound.

Electrical Data:

500V

Number of Cores × Nominal Cross Section Area Maximum Transfer impedance
No. × mm² m Ω /m
2×1.5 30
3×1.5 30
3G1.5 30
7×1.5 30
4×2×0.75 30
12×0.75 30
12×1.5 30
24×1.5 30

Dimension and Weight:

Number of Cores × Nominal
Cross Section Area
Maximum Single
Core Diameter
Minimum Sheath
Thickness
Minimum Overall
Diameter
Maximum Overall
Diameter
Maximum Weight
No. × mm² mm mm mm mm kg/km
2×1.5 3.4 2.0 12.6 13.2 200
3×1.5 3.4 2.0 13.4 13.8 250
3G1.5 3.4 2.0 13.4 13.8 250
7×1.5 3.4 1.5 15.7 16.2 430
4×2×0.75 2.5 2.0 20.6 21.2 560
12×0.75 2.5 2.0 18.5 19.1 540
12×1.5 3.4 2.0 20.9 21.5 700
24×1.5 3.4 2.0 28.1 28.7 1230
