These PTFE tape insulation single-core MIL-W-22759/91 wires are used for MIL-Spec and Aerospace, these cables are light weight, high-performance, aerospace hook up wires with insulation composed of PTFE/polyimide/PTFE tape and PTFE tape. These wires are designed for aerospace and other applications which require excellent thermal stability and light weight.

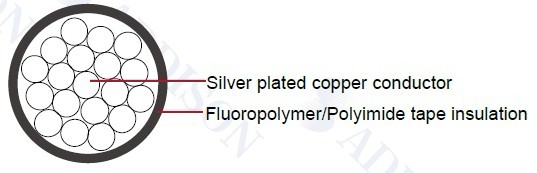

A PTFE/K/PTFE layer construction
Temperature Rating | 200°C |
Voltage Rating | 600 volts MIL-Spec Wire SAE AS22759/91 |
Color Code | MIL-STD-681 |
AWG Size | Conductor Stranding | Conductor Diam. Min | Conductor Diam. Max | Min O.D. | Max O.D. | Approx LBS/ MFT | ||||
---|---|---|---|---|---|---|---|---|---|---|
In | mm | In | mm | In | mm | In | mm | |||
26 | 19/38 | 0.018 | 0.440 | 0.019 | 0.490 | 0.030 | 0.762 | 0.034 | 0.864 | 1.43 |
24 | 19/36 | 0.023 | 0.570 | 0.024 | 0.620 | 0.034 | 0.864 | 0.038 | 0.965 | 1.93 |
22 | 19/34 | 0.029 | 0.720 | 0.030 | 0.770 | 0.040 | 1.016 | 0.043 | 1.092 | 2.85 |
20 | 19/32 | 0.037 | 0.930 | 0.038 | 0.980 | 0.048 | 1.219 | 0.051 | 1.295 | 4.38 |
18 | 19/30 | 0.046 | 1.160 | 0.048 | 1.230 | 0.056 | 1.422 | 0.060 | 1.524 | 6.60 |
16 | 19/29 | 0.052 | 1.310 | 0.054 | 1.380 | 0.063 | 1.600 | 0.067 | 1.702 | 8.30 |
14 | 19/27 | 0.065 | 1.640 | 0.068 | 1.740 | 0.076 | 1.930 | 0.080 | 2.032 | 12.60 |
12 | 37/28 | 0.084 | 2.120 | 0.087 | 2.220 | 0.096 | 2.438 | 0.100 | 2.540 | 19.60 |
10 | 37/26 | 0.106 | 2.690 | 0.110 | 2.790 | 0.119 | 3.023 | 0.123 | 3.124 | 30.60 |
