FIREGUARD Flame Retardant Cables

Flame Retardant Power & Control Cables

600/1000V XLPE Insulated, PVC Sheathed, Screened Power Cables (4 Cores)

FGD400 1RCVMV-R (CU/XLPE/CUTO/PVC/SWA/PVC 600/1000V Class 2)

Flame Retardant Power & Control Cables

APPLICATION
This cables are designed specifi cally to suit the broad spectrum of requirements of Variable Speed
Drives and also include features for reducing the transmission of electromagnetic interference.
This range of screened cables drastically reduce interferences from electrical noise, especially in
Variable Speed Drive (VSD) applications and are manufactured with fixed conductors.
With shield conductivity of 1/10th of phase conductor conductivity, this range of VSD cables
effectively restrain radiated and conducted radio-frequency emissions.

STANDARDS
Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING
600/1000V

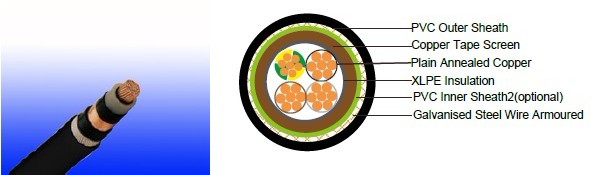

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner sheath1: PVC Compound
Screen: Copper TapeInner sheath2: PVC Compound
Armouring: Galvanised Steel Wire
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE
Insulation Colour as per BS7671



With Earth Conductor

Without Earth Conductor

2Cores

-

Brown, Blue

3Cores

Yellow/Green, Brown, Blue

Brown, Gray, Black

4Cores

Yellow/Green, Brown, Gray, Black

Brown, Gray, Black, Blue

5Cores

Yellow/Green, Brown, Gray, Black, Blue

Brown, Gray, Black, Blue, Black

Above 5 Cores

Yellow/Green, Black Numbered

Black Numbered


Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 12 x Overall Diameter (for 1.5mm2 to 300mm2)

CONSTRUCTION PARAMETERS

Conductor FGD400 1RCVMV-R

No. of Core
X
Cross
Section

No./
Nominal
Diameter
of
Strands

Nominal
Insulation
Thickness

Nominal
Sheath
Thickness

Diameter
Under
Screen

Diameter
Over Inner
Sheath

Armour
Wire
Diameter

Nominal
Overall
Diameter

Approx.
Weight

mm2

No./mm

mm

mm

mm

mm

mm

mm

kg/km

4x1.5

7/0.53

0.7

1.8

9.7

12.1

13.9

17.7

640

4x2.5

7/0.67

0.7

1.8

10.7

13.1

14.9

18.7

730

4x4

7/0.85

0.7

1.8

12.0

14.4

16.2

20.0

870

4x6

7/1.04

0.7

1.8

13.4

15.8

18.3

22.1

1180

4x10

7/1.35

0.7

1.8

15.6

18.0

20.5

24.3

1490

4x16

7/1.70

0.7

1.8

18.1

20.5

23.7

27.5

2070

4x25

7/2.14

0.9

1.8

22.3

24.1

27.3

31.1

2790

4x35(S)

7/2.52

0.9

1.8

25.0

26.8

30.0

33.8

2940

4x50(S)

19/1.78

1.0

2.0

27.8

29.6

32.8

37.0

3500

4x70(S)

19/2.14

1.1

2.2

31.6

33.4

37.4

42.0

5000

4x95(S)

19/2.52

1.1

2.3

35.4

37.2

41.2

46.0

6300

4x120(S)

37/2.03

1.2

2.5

39.0

40.8

45.8

51.0

8200

4x150(S)

37/2.25

1.4

2.6

42.0

43.8

48.8

54.2

9600

4x185(S)

37/2.52

1.6

2.8

47.8

49.6

54.6

60.4

11500

4x240(S)

61/2.25

1.7

3.0

54.0

55.8

60.8

67.0

14400

4x300(S)

61/2.52

1.8

3.0

58.0

59.8

64.8

71.4

17200

Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor
crosssectional
area
Reference
Method 1 (clipped
direct)
Reference Method 11 (on
a perforated horizontal
cable trayor Reference
Method 13 [free air] )
In single-way
ducts
Laid direct in ground
one
2-core
cable
single
phase
a.c. or
d.c.
one
3-core
or
4-core
cable
3-phase
a.c.
one 2-core
cable single
phase a.c.
or d.c.
one 3-core
or 4-core
cable
3-phase
a.c.
one
2-core
cable
single
phase
a.c. or
d.c.
one
3-core or
4-core
cable
3-phase
a.c.
one
2-core
cable
single
phase
a.c. or
d.c.
one
3-core or
4-core
cable
3-phase
a.c.

1

2

3

4

5

6

7

8

9

mm2

A

A

A

A

A

A

A

A

1.5

27

23

29

25

-

23

-

28

2.5

36

31

39

33

-

30

-

36

4

49

42

52

44

-

40

-

48

6

62

53

66

56

-

50

-

60

10

85

73

90

78

-

65

-

80

16

110

94

115

99

115

94

140

115

25

146

124

152

131

145

125

180

150

35

180

154

188

162

175

150

215

180

50

219

187

228

197

210

175

255

215

70

279

238

291

251

260

215

315

265

95

338

289

354

304

310

260

380

315

120

392

335

410

353

355

300

430

360

150

451

386

472

406

400

335

480

405

185

515

441

539

463

455

380

540

460

240

607

520

636

546

520

440

630

530

300

698

599

732

628

590

495

700

590

Voltage Drop (Per Amp Per Meter)

Conductor cross- sectional area

2-core cable d.c.

2 cables, single-phase a.c.

3 or 4 cables, 3-phase a.c.

2 cables, single-phase a.c.

3 or 4 cables,
3-phase a.c.

In ducts or in ground

In ducts or in ground

1

2

3

4

5

6

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31.0

31.0

27.0

31.0

25.0

2.5

19.0

19.0

16.0

19.0

15.0

4

12.0

12.0

10.0

12.0

9.7

6

7.9

7.9

6.8

7.9

6.5

10

4.7

4.7

4.0

4.7

3.9

16

2.9

2.9

2.5

2.9

2.6





r

x

z

r

x

z





25

1.850

1.350

0.160

1.900

1.600

0.140

1.650

1.900

1.600

35

1.350

1.350

0.155

1.350

1.150

0.135

1.150

1.350

1.200

50

0.980

0.990

0.155

1.000

0.860

0.135

0.870

1.000

0.870

70

0.670

0.670

0.150

0.690

0.590

0.130

0.600

0.690

0.610

95

0.490

0.500

0.150

0.520

0.430

0.130

0.450

0.520

0.450

120

0.390

0.400

0.145

0.420

0.340

0.130

0.370

0.420

0.360

150

0.310

0.320

0.145

0.350

0.280

0.125

0.300

0.350

0.300

185

0.250

0.260

0.145

0.290

0.220

0.125

0.260

0.290

0.250

240

0.195

0.200

0.140

0.240

0.175

0.125

0.210

0.240

0.210

300

0.155

0.160

0.140

0.210

0.140

0.120

0.185

0.210

0.190
