|Cables for Oil Industry|
Medium Voltage XLPE Insulated Overall Screened & Steel Wire Armored Cable to IEC 60502-2
These cables are suitable for installation mostly in power supply stations, indoors and in cable ducts,
outdoors, underground and in water as well as for installation on cable trays for industries, switchboards
and power stations, where require chemical and mechanical protection.
IEC 60228; IEC 60502-2

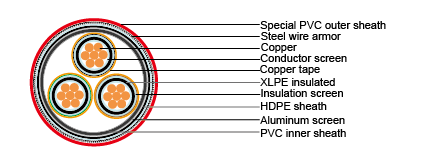

Conductor: Stranded bare copper (class 2)
Conductor screen: This will be an extruded layer of semi-conducting crosslinkable compound applied
under simultaneous triple extrusion process over the conductor along with the insulation and the
Insulation: Cross-linked polyethylene (XLPE)
Insulation screen: This will be a layer of semi-conducting crosslinkable compound which will be applied
by triple extrusion process over the insulation.
1 Core: Natural
3 Cores: Black, Green, Brown
Inner sheath: PVC
Overall screen: Aluminum/polyethylene tape
Sheath: HDPE Color: black
Special sheath (intermediate sheath): Polyamide
Armor: Galvanized steel wires or aluminium wires for 1 core cable
Outer sheath: Special PVC. Color: red. U.V resistance can be offered upon request.
Fire retardance: IEC 60332-3-22
Operating temperature: -20~60°C
Max. conductor operating temperature: 90°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
For detailed data for this cable, welcome to go to the DOWNLOAD area for document download or online viewing.
