Multi-core 600/1000V cables with stranded copper conductors

APPLICATION

These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...).

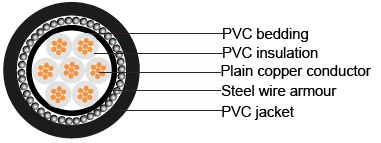

CONSTRUCTION

Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation PVC(Polyvinyl Chloride) type TI1
Colour Code 1 Core : Brown
2 Cores: Brown or Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green-yellow, Blue, Brown, Black, Grey
Above 5 Cores: White Cores with black numbers
Filler(optional) PVC or Polypropylene yarn
Binder Tape(optional) Polyester (Mylar) tape
Inner Sheath/ Bedding PVC (Polyvinyl Chloride)
Armour Single Core: AWA (Aluminum WireArmour)
Multi Core: SWA (Steel Wire or Tape Armour)
Outer Sheath PVC(Polyvinyl Chloride), type TM1

TECHNICAL INFORMATION

Voltage rating 600/1000V
Temperature rating -20°C to +60°C
Bending radius Single core: 10 x overall diameter
Multicores: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1

CABLE PARAMETER

No. of Cores Nominal cross-sectional area Number/ wire Nominal insulation thickness Nominal bedding thickness Nominal alum wire armor dia. Nominal sheath thick ness Approx. overall diameter Approx. cable weight
mm² No./mm mm mm mm mm mm kg/mm
7 1.5 7/0.53 0.6 0.8 0.9 1.4 15.2 500
10 1.5 7/0.53 0.6 0.8 1.25 1.5 18.6 780
12 1.5 7/0.53 0.6 0.8 1.25 1.5 19.4 830
19 1.5 7/0.53 0.6 0.8 1.25 1.6 22.2 1090
27 1.5 7/0.53 0.6 1.0 1.6 1.7 26.7 1600
37 1.5 7/0.53 0.6 1.0 1.6 1.8 29.2 1940
48 1.5 7/0.53 0.6 1.0 1.6 1.9 32.9 2360
7 2.5 7/0.67 0.7 0.8 1.25 1.5 18.0 750
10 2.5 7/0.67 0.7 0.8 1.25 1.6 21.8 1000
12 2.5 7/0.67 0.7 0.8 1.25 1.6 22.4 1080
19 2.5 7/0.67 0.7 1.0 1.6 1.7 26.6 1640
27 2.5 7/0.67 0.7 1.0 1.6 1.8 30.7 2110
37 2.5 7/0.67 0.7 1.0 1.6 1.9 34.0 2600
48 2.5 7/0.67 0.7 1.2 2.0 2.1 39.5 3520
7 4 7/0.85 0.8 0.8 1.25 1.6 20.5 970
10 4 7/0.85 0.8 1.0 1.6 1.7 26.1 1500
12 4 7/0.85 0.8 1.0 1.6 1.7 26.8 1630
19 4 7/0.85 0.8 1.0 1.6 1.8 30.5 2170
27 4 7/0.85 0.8 1.2 2.0 2.0 37.1 3170
37 4 7/0.85 0.8 1.2 2.0 2.1 40.8 3910
48 4 7/0.85 0.8 1.2 2.0 2.2 46.0 4790
